Hi can any one help

Please I want to wire up my ptu series one plug on new harness which has ptu series two plug, and I need the diagram to figure out which wire go where. Or if that is even possible, can any one shed some light on this please

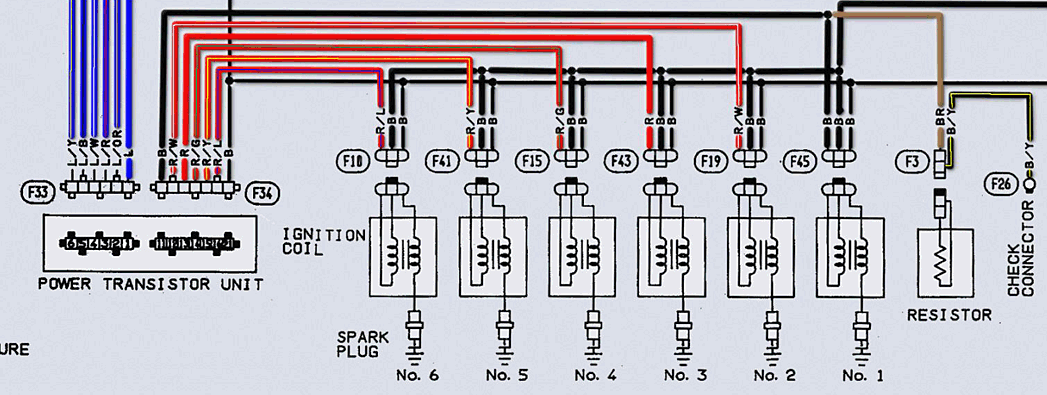

ECCS_colored_m.pdf

Edited September 3, 20196 yr by JaiKai

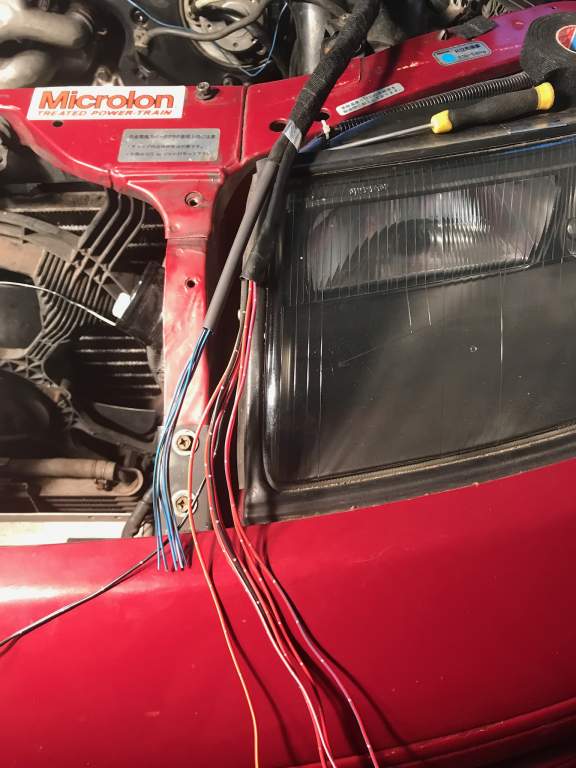

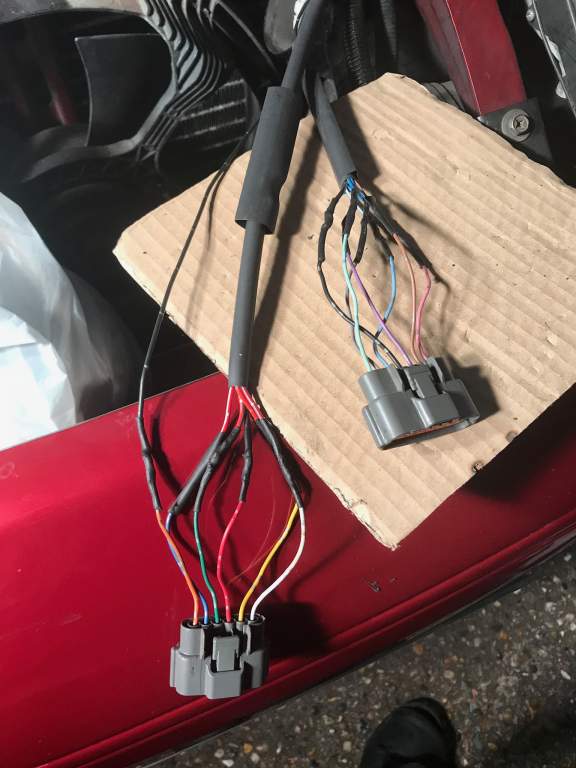

I just stripped both and copied the configuration, made 1 mistake but sorted that.

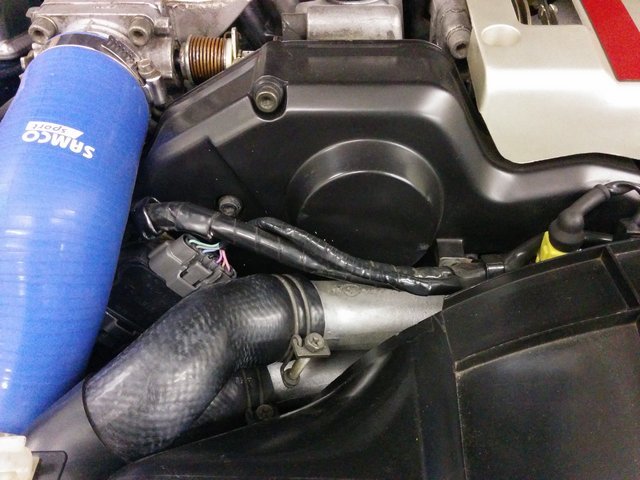

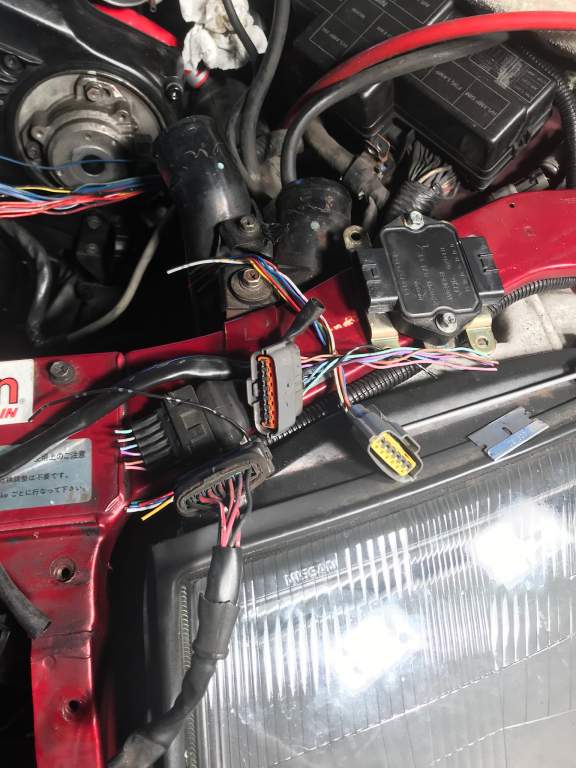

And put it under nose panel .

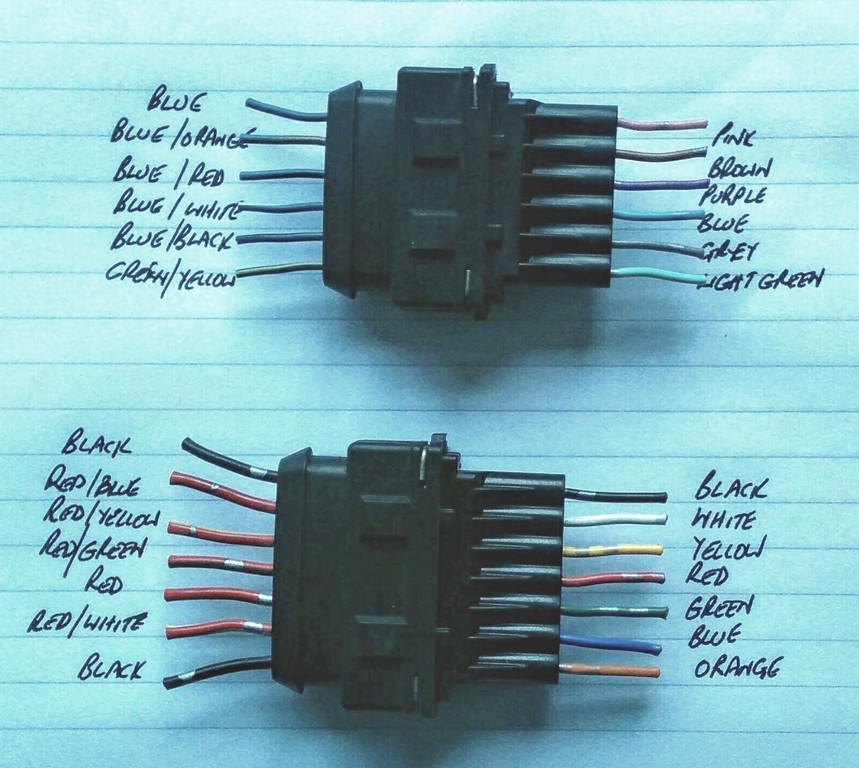

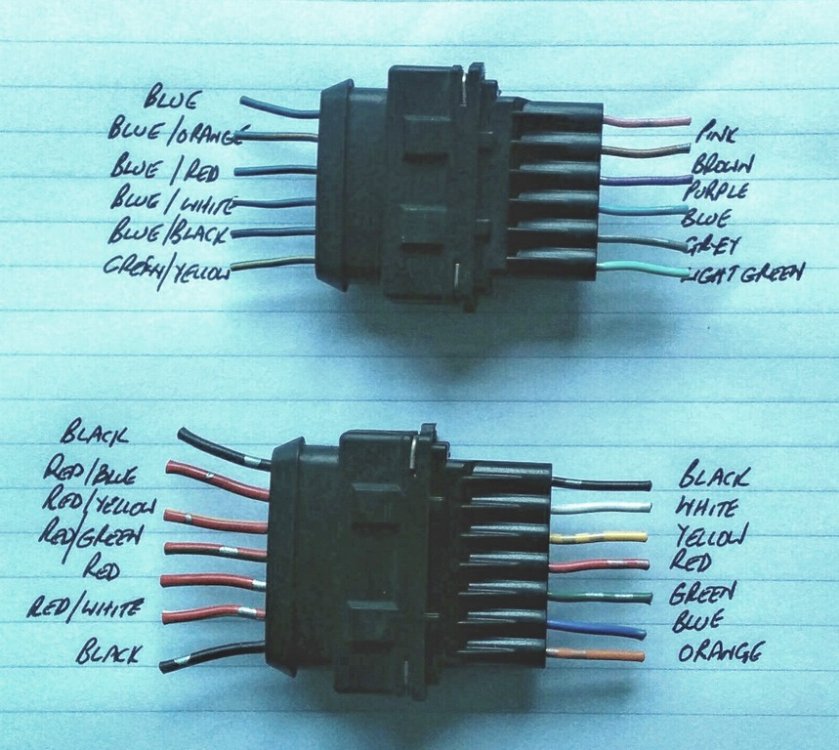

To splice a S2 PTU to a S1 PTU harness:





Thank you soo much really appreciate it



- - - Updated - - -



Thank you so so much

My problem is that I have put the new harness which has the series two plugs and my ptu is the series 1, so iv cut the old plugs to shoulder on to the new harness. Basically the opposite to what you have done. I'm trying to figure out the wiring and finding it so difficult
