Trying to install a Toad alarm in my 91 NA and the wiring is different to my 96 TT which to me in comparison was a snitch to install.



Pain in the ass is the word,



So far ive figured this :



White - Constant 12V

Black (white stripe) - Ignition

Black (red stripe) - ???

Blue - Accesory 12V

Black (yellow stripe) - ???





Can anyone identify the other two ?



Starter motor solenoid and ECU start feed



Jeff TT

Edited April 1, 201213 yr by JeffTT

From what I can work out;



Black- yellow st goes to the fuse box

Black- red st goes to the ECCS control unit pin 45 and a Grnd fuse link



HTH

Edited April 1, 201213 yr by Steams

Jeff, Isn't it the black (white) line that goes to the starter solenoid?

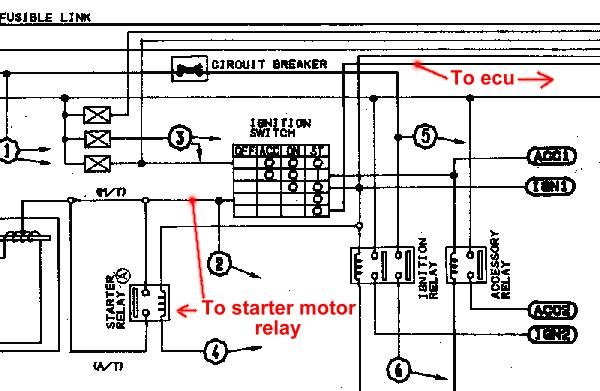

Heres what the harness going to the ignition barrel looks like; plug side goes straight into the barrel



Lee, have a look in the faq section. Groover put some coloured wiring diagrams in there. That's what I used, it's just a case of tracking the wires.



Edit: it's section E-12 you need.

Edited April 1, 201213 yr by Steams
