Hi all,



About 6 months ago i bought a second hand race logic traction control system and i am looking to get it installed/install it. The harness appears to be in good condition, with minimal cutting in its removal by the previous owner bar a few wires, and a full write up is available on how to install the unit but the only issue i have is not being 100% sure that the harness is as it should be and with my lack of electrical knowledge i thus would not want to self-install without assurance it is all as it should be and then can follow the guide easily..

Ive tried to find complete wiring diagrams to follow to make sure everything is as should be but cannot find much. Anyone with the unit or who has experience with the unit would be massively appreciated who can help me 1) determine the wiring is all setup ready to go or 2) help me install the unit?

I can offer some cash for your services and cups of teas..



Im located in Wales, a mile away from Cardiff



Rhys

http://twinturbo.net/nissan/300zx/tech/tc/tc.html









that was the link i followed,one very important thing is where to take the live feed from, it must not suffer from volt drop. the system will not work if it does, also. the standard spring type fuse holder supplied is useless, change it for a blade type, i had to after finding it kept cutting the signal out to the racelogic ecu.

Just an update.. Apparently after calling the support team there are two types of RaceLogic Units, 1 for ABS sensors and 1 for Wheel speed sensors (which I think you have to install yourself) I have the later and thus isn't compatible. Incredibly frustrating as there's no documentation of this online and I didn't even know 2 models existed.. Guess I'll be posting into the wanted and for sale thread.. :(





Sent from my iPhone using Tapatalk

If I could add to Rhys's comments above, there are indeed two different types of RLTC made for ABS and non ABS cars.

(the later require wheel speed sensors to be added to the car). This is something I hadn't come across before, and was

only apparent in reading through all RL's installation manual. A non ABS RLTC will not work with a ABS equipped car

without modification by RL (a service that is not longer provided by them).



The good news is that if you see a RLTC for sale then two types can be identified by looking at the wires shown below

on the main plug going into the RLTC. If they are all red as shown then the model is for non-ABS cars. If they are a group

of red, blue, yellow and green then the model is for ABS cars and is the type needed for Z32's







By way of reference, these are the RL part numbers for the various models (ABS equipped cars and non ABS - WSS)



Edited April 12, 20178 yr by AndrewG

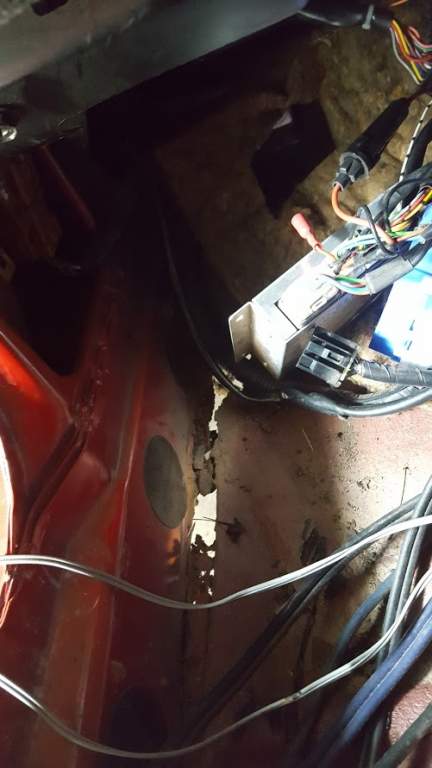

That's my rltc im at it repairing the floor I can check wires for you what I have, they were indeed wired into the abs sensors at the back

I've added a link to down load the manual for the traction control " http://www.racelogic.co.uk/_downloads/traction/Traction_Manual.pdf "



Pages 56,57,58,59 refer to the fitting wheel "Self-Fit Sensors"



Hope this helps.

Traction_Manual.pdf
