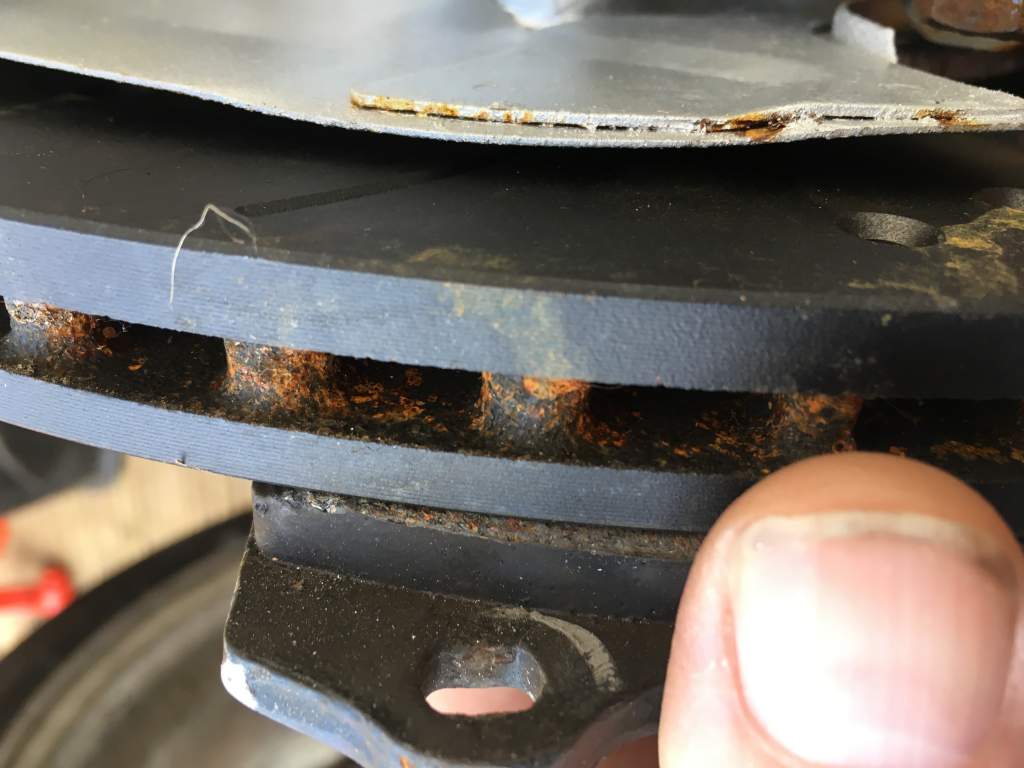

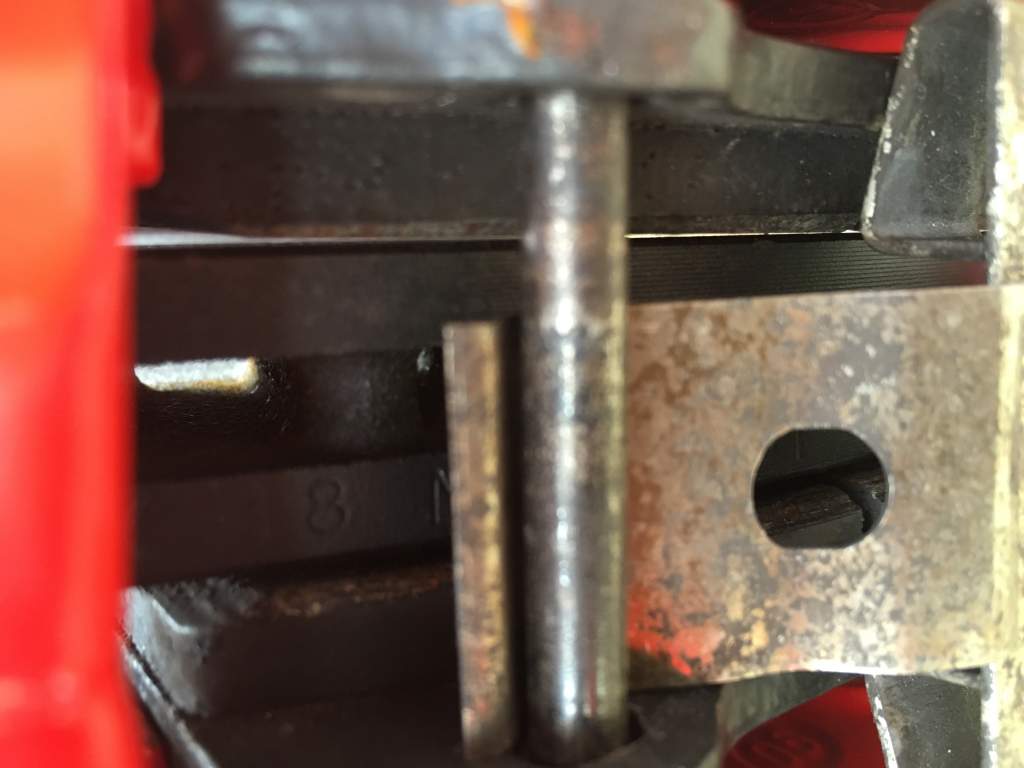

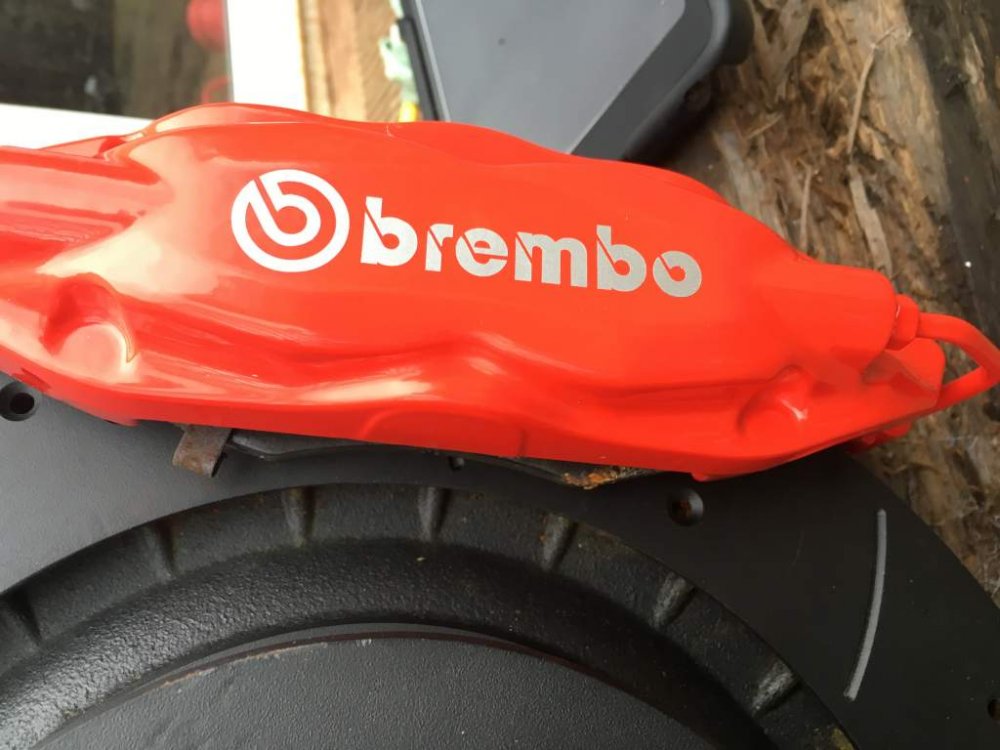

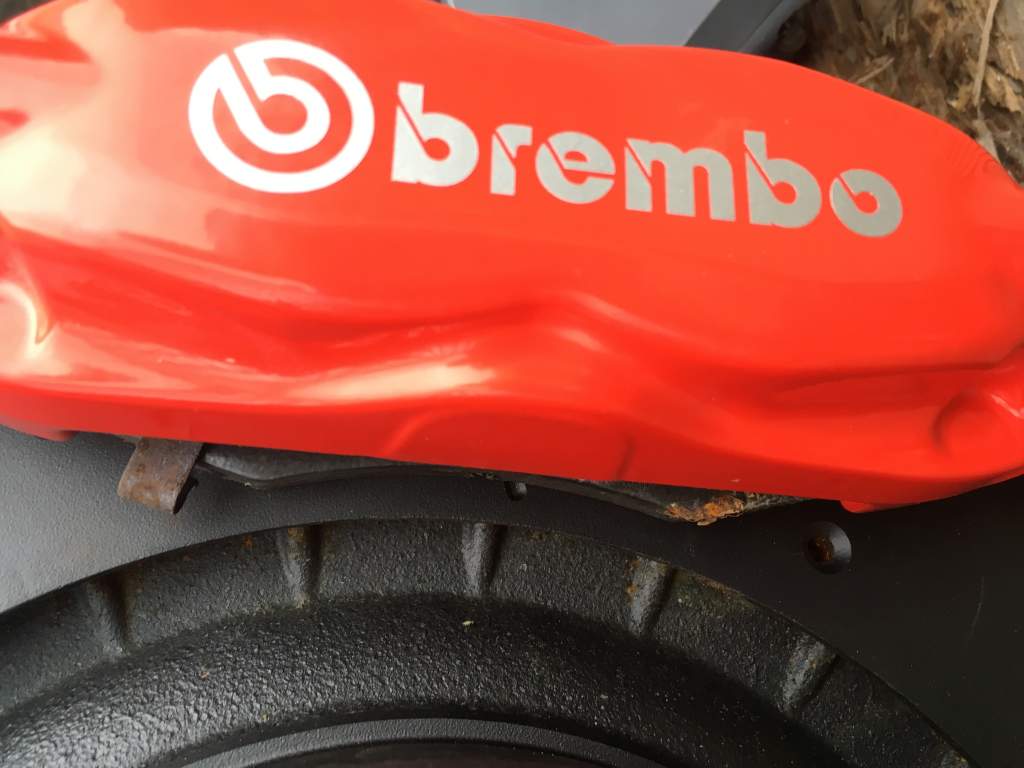

Did the skim and threw in a set of pads to see what the coverage was like, what do you guys reckon?? Is this close enough ??





Did the skim and threw in a set of pads to see what the coverage was like, what do you guys reckon?? Is this close enough ??

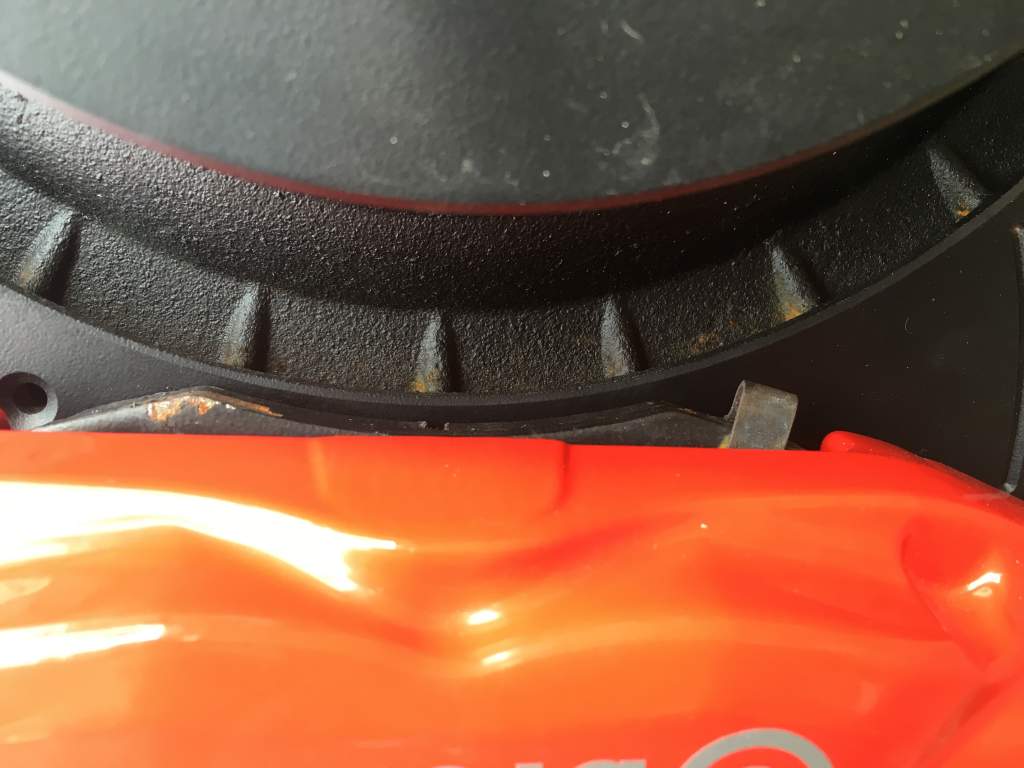

The important part of the caliper/pad fitment in relation to the disc is to position the top edge of the pad level with the nominal disc

outside diameter. How does it look on yours?

The important part of the caliper/pad fitment in relation to the disc is to position the top edge of the pad level with the nominal disc

outside diameter. How does it look on yours?



I have a bit of pad overhang, I'll have a look again tomorrow, thanks Andrew:thumbup1:

The important part of the caliper/pad fitment in relation to the disc is to position the top edge of the pad level with the nominal disc

Yep.If you have pad overhang then you are effectively reducing the friction area used and therefore the efficiency.

We have had this situation with my mate Steves Time Attack 240Z. The old set up we removed had 4mm pad overhang on a pad measuring 42 mm so about 10%.

That reduces the braking by approx the same amount I reckon.



Pad overhang also fools you in to thinking the pad is new even if its half worn cos you only see that outer unused edge.

I'm going to revisit this tomorrow and see if I can shift / finesse the caliper to sit the pad the 4-5mm closer, would it being a 4 pot not increase the area where pressure is applied to a much larger 350mm rear disc??

The pressure applied depends on the size and therefore area of the pistons. For example, a two pot caliper with the same

total piston area as a four pot caliper will excert the same pressure on the pad. What size are your pistons?

The pressure applied depends on the size and therefore area of the pistons. For example, a two pot caliper with the same

total piston area as a four pot caliper will excert the same pressure on the pad. What size are your pistons?



It's a dual size with 32mm and 26mm pistons, 26mm on top with 32mm on the bottom.

Had a check of the pads and they fit the 350mm discs perfectly, so I have to shave a few mil off the calipers to get them sitting exact.



Pics

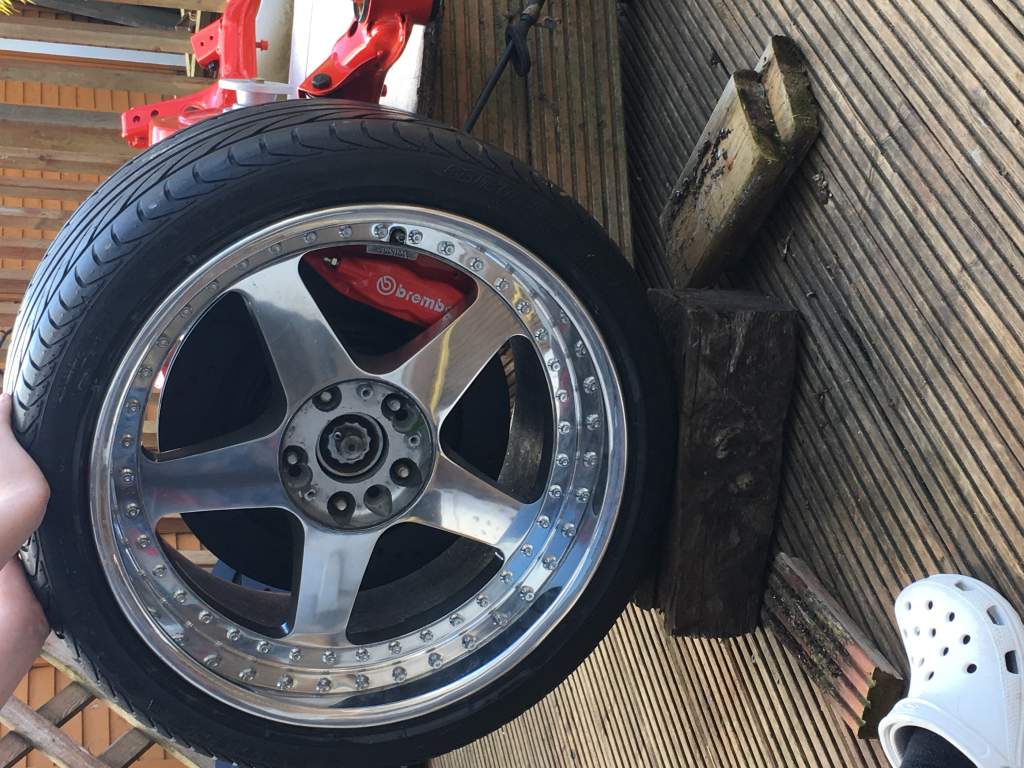

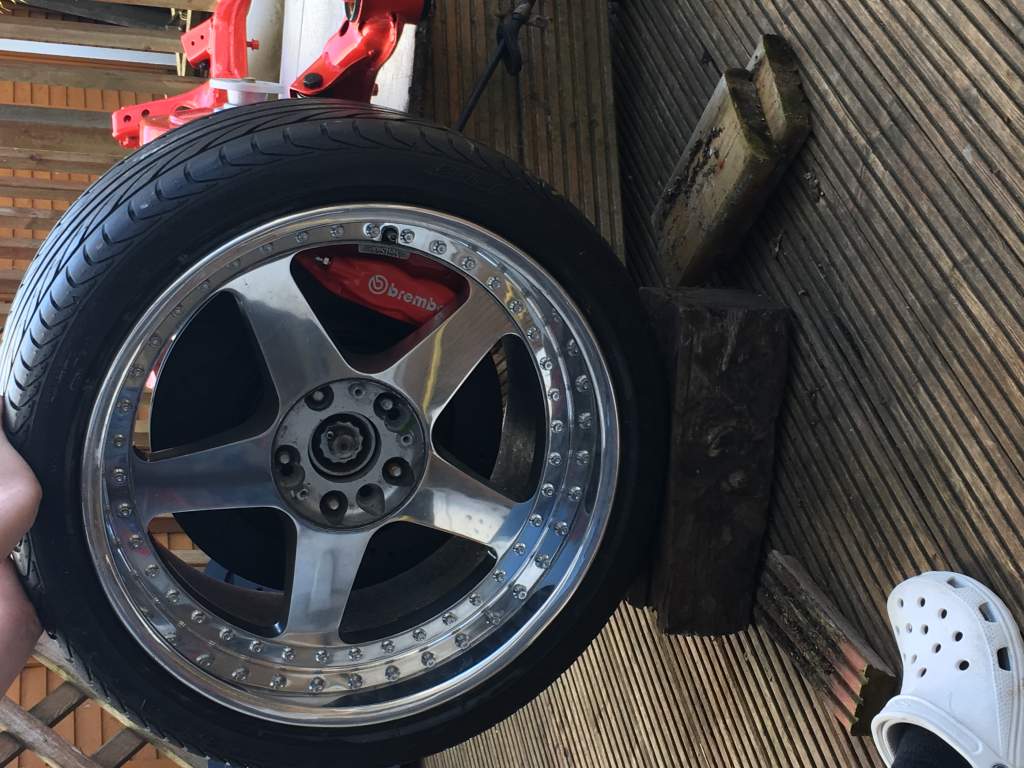

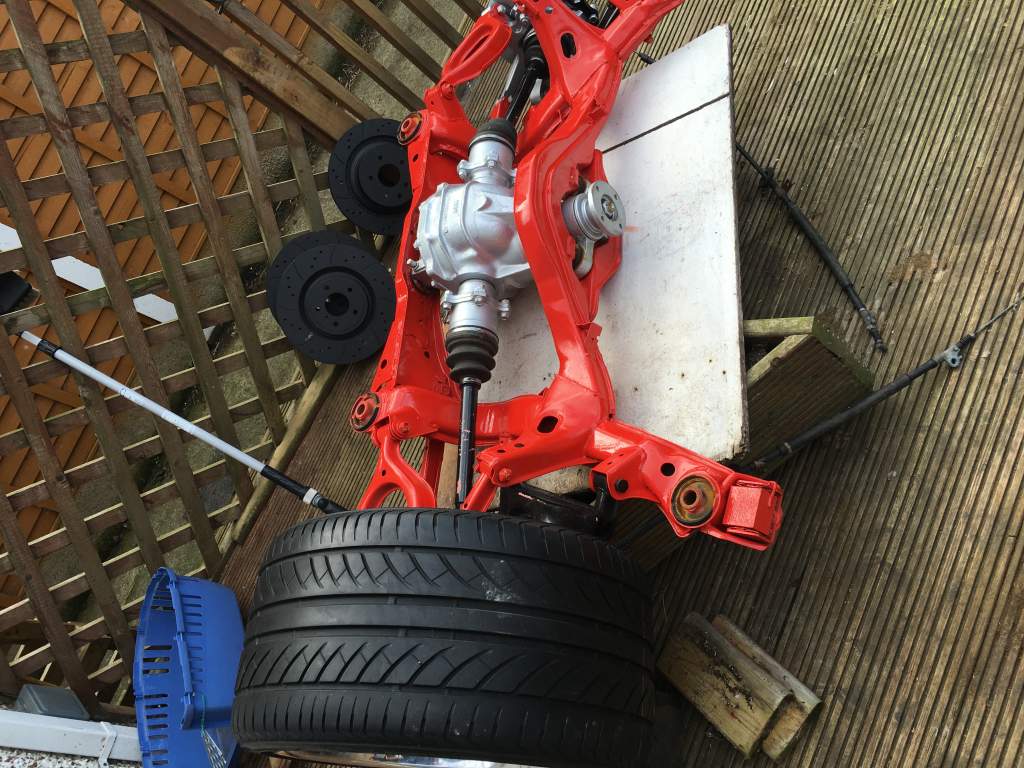

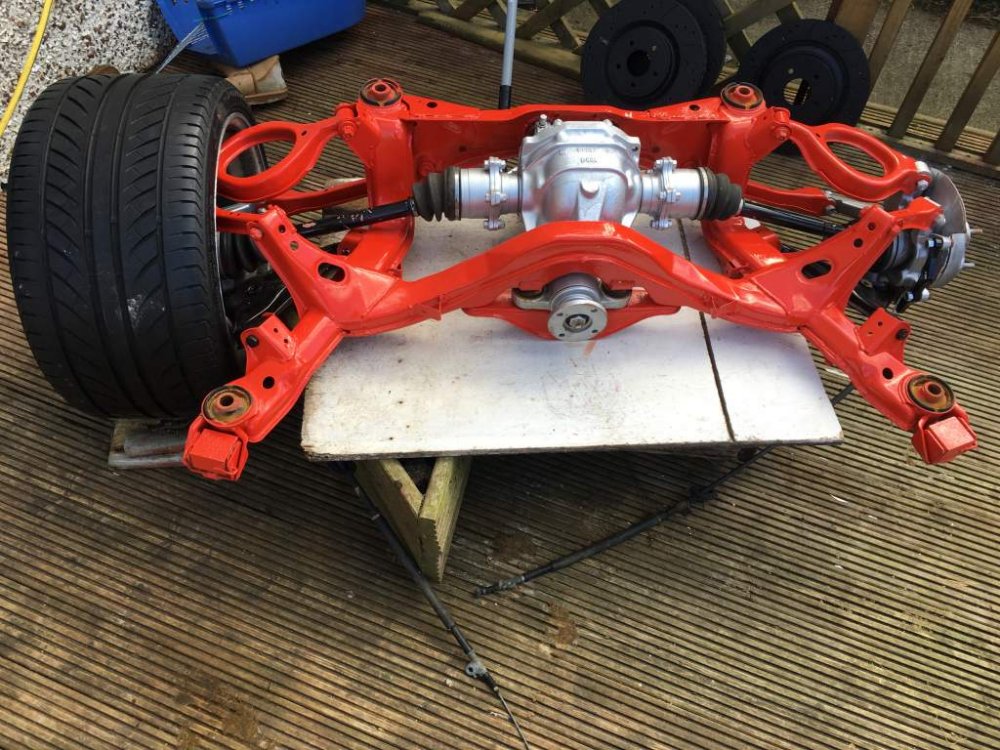

Said I'd put the subframe back together to test fit the wheels and calipers for clearance, have about 3 mils from the spokes:punk:







Edited August 24, 20169 yr by Richie K

I raised the wheel a bit to level off the suspension arms



Awesome!

Awesome!



Thanks Joel, it still needs a bit of tweaking regarding full pad coverage but I'm getting there:thumbup1:

Tweaking pretty much sorted:punk:

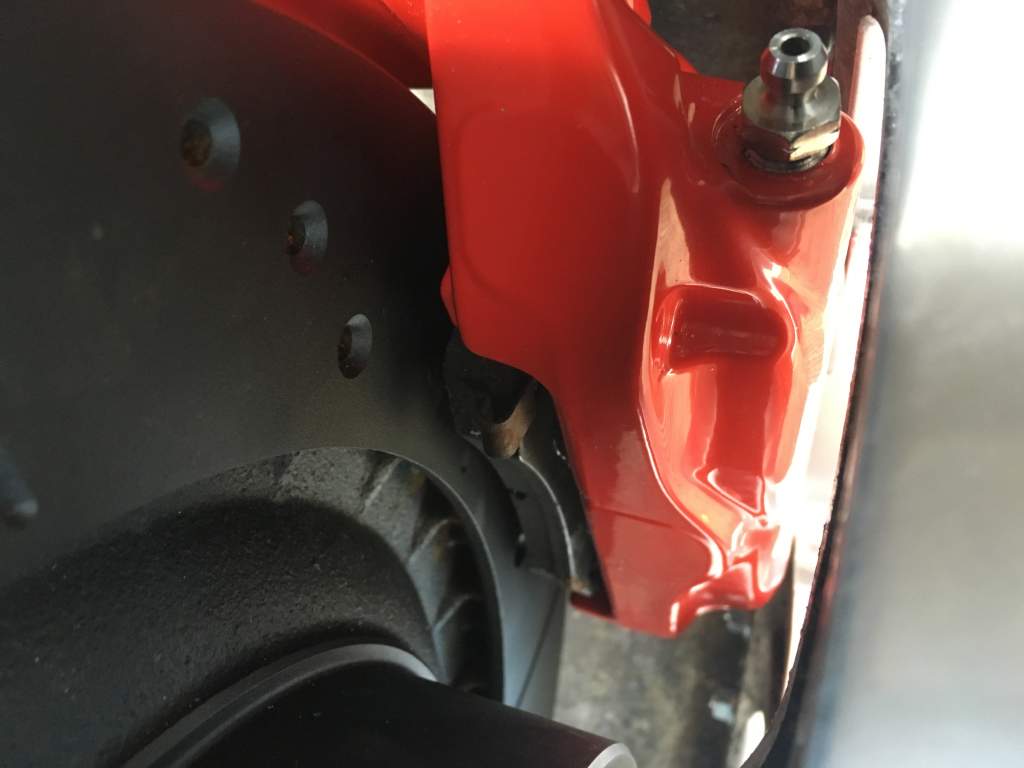

Full pad coverage:clap:





Well done Richie :thumbup:

If you collect the various values required (see calculator notes) you can come up the F/R bias of your new setup.



http://www.tceperformanceproducts.com/bias-calculator/



By way of reference, for stock calipers, discs and pads below the split point of the proportioning valve (498psi) the brake bias

ratio F/R is 2.1/1 and above the split point the ratio F/R is 3.0/1.



The proportioning valve is built into the master cylinder and reduces the hydraulic pressure exerted on the rear caliper pistons

relative to the fronts when you apply pressure to the system above the split point. If you like, between light/medium braking

and heavy braking.

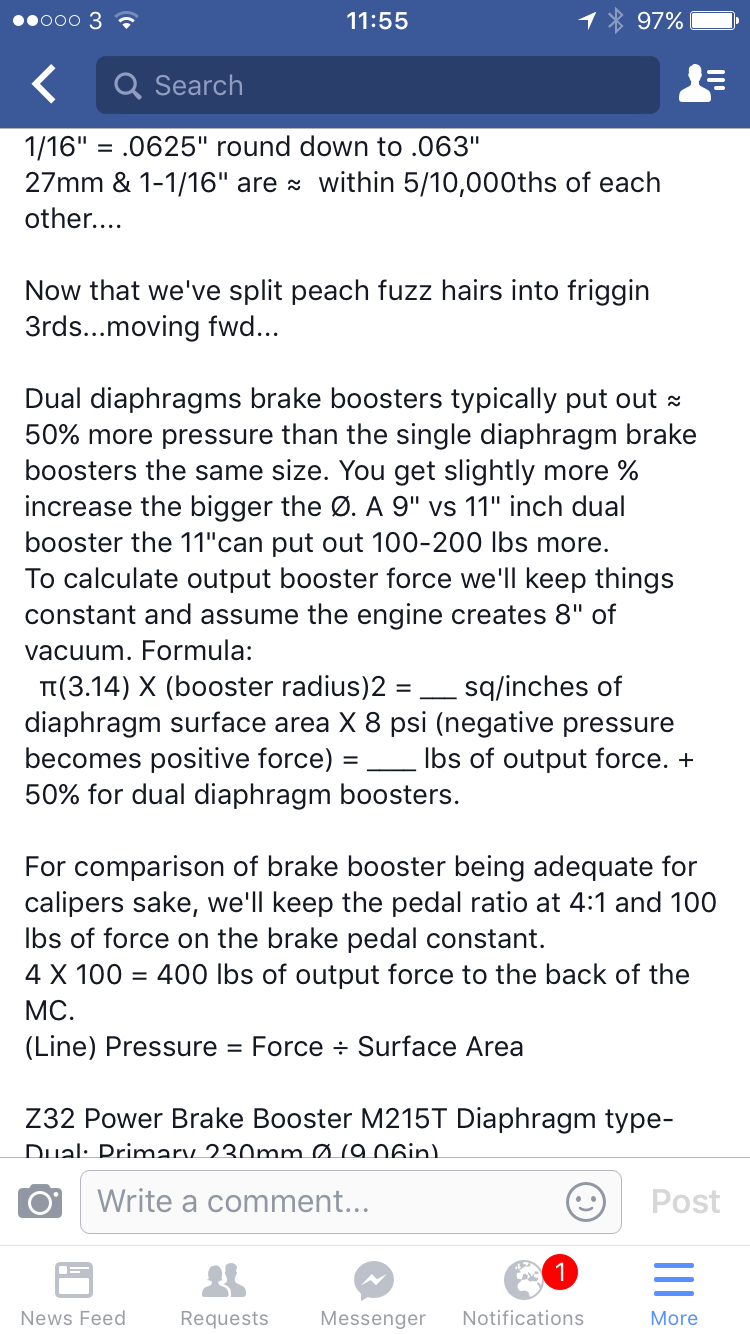

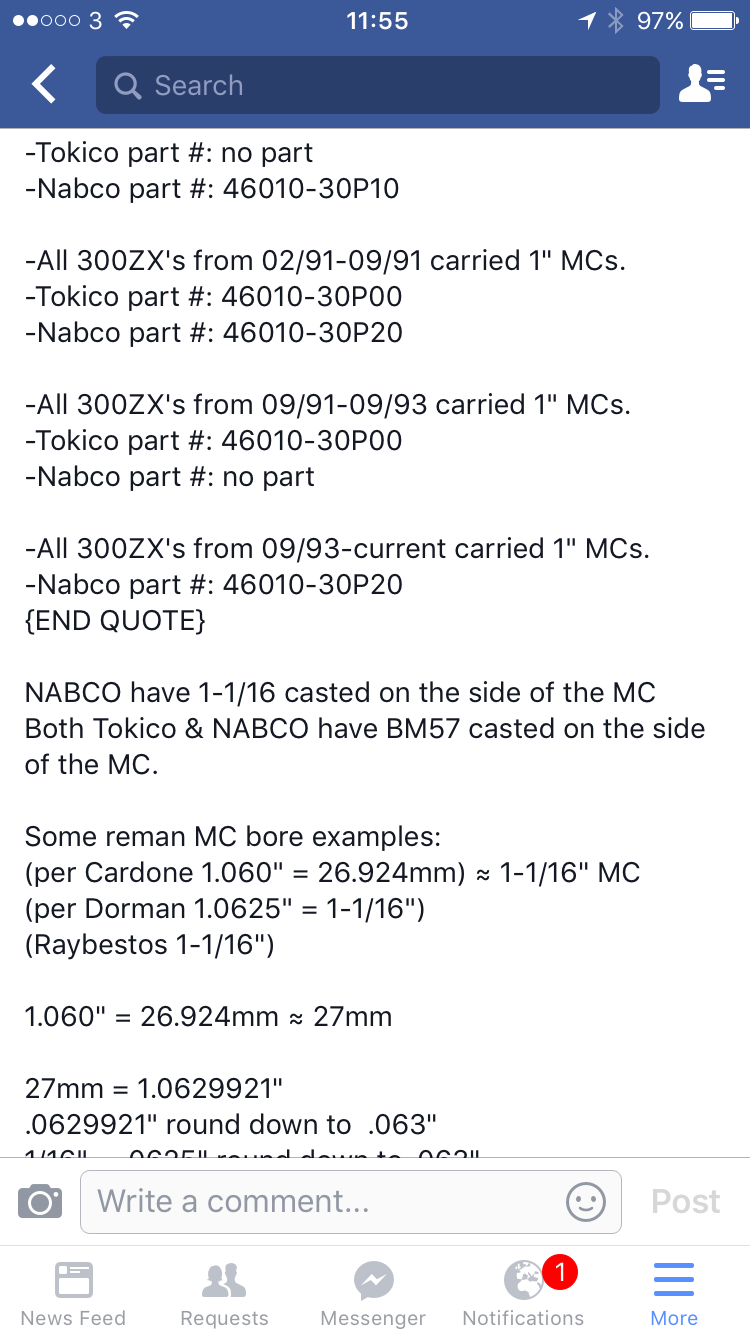

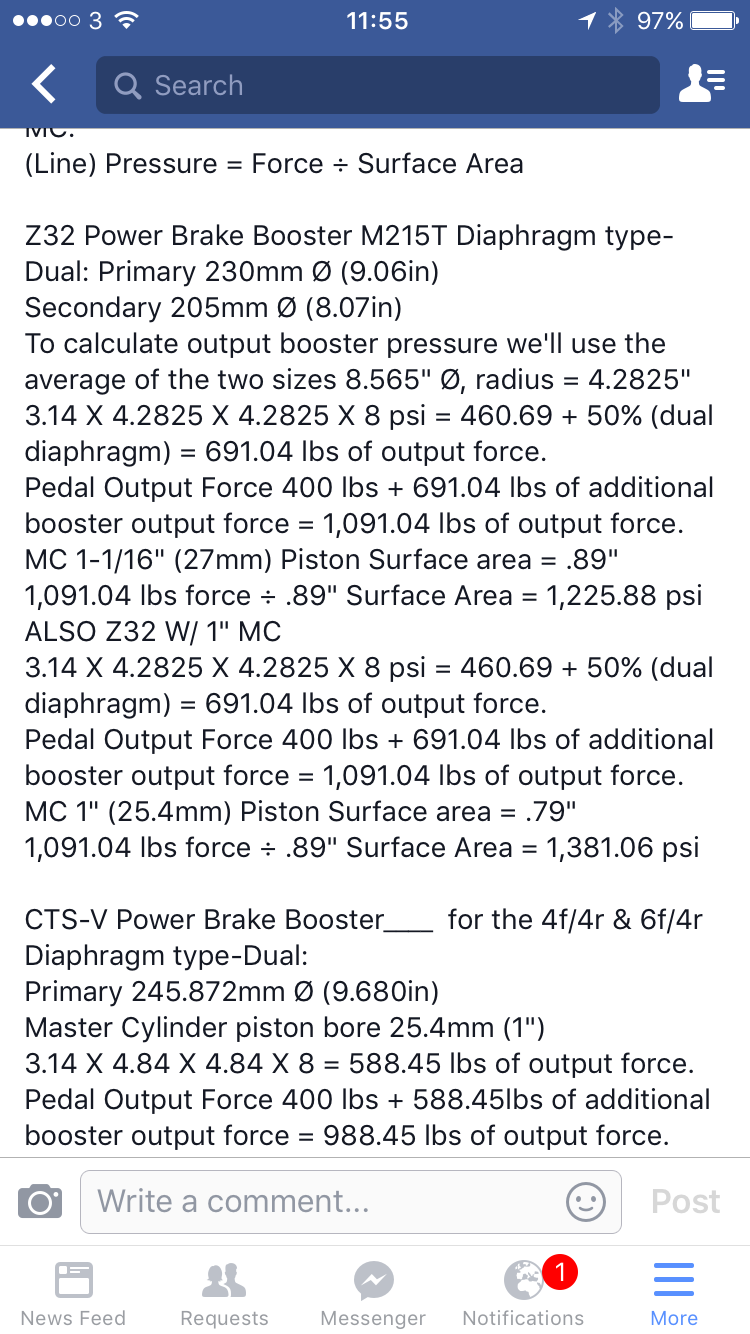

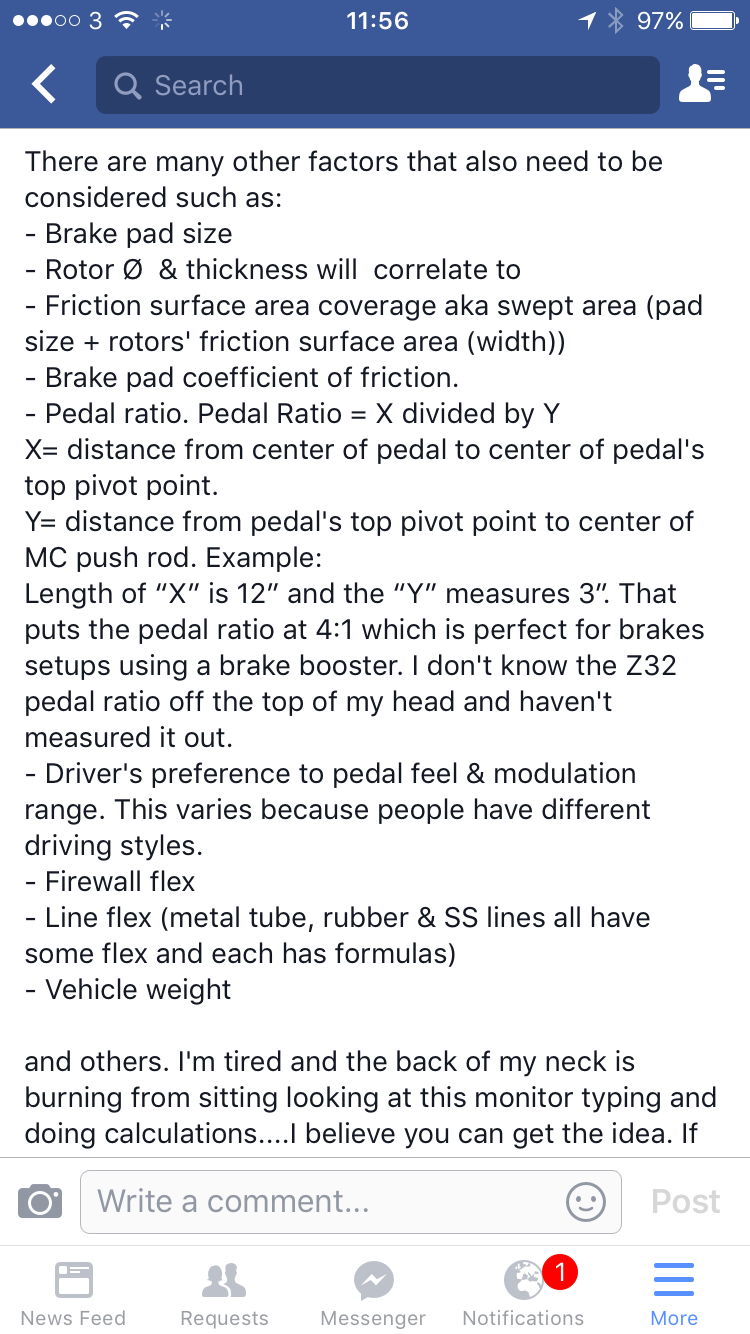

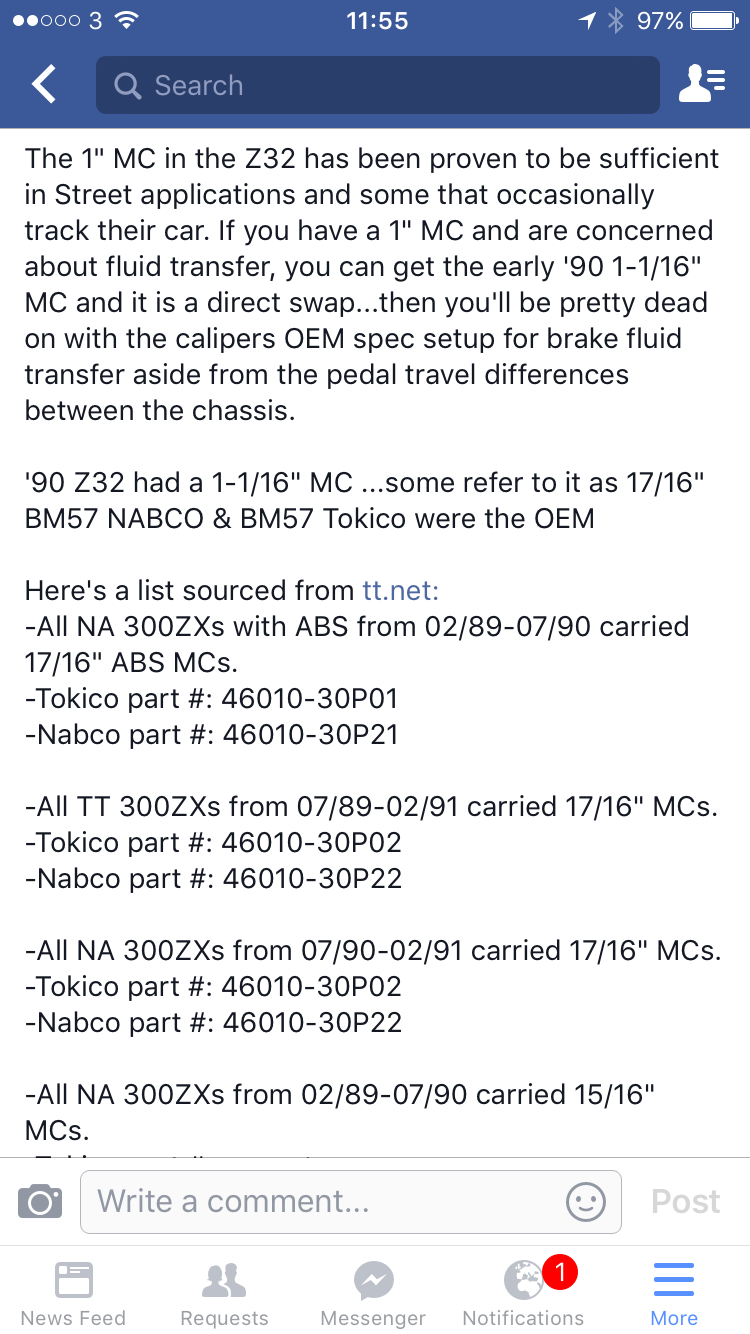

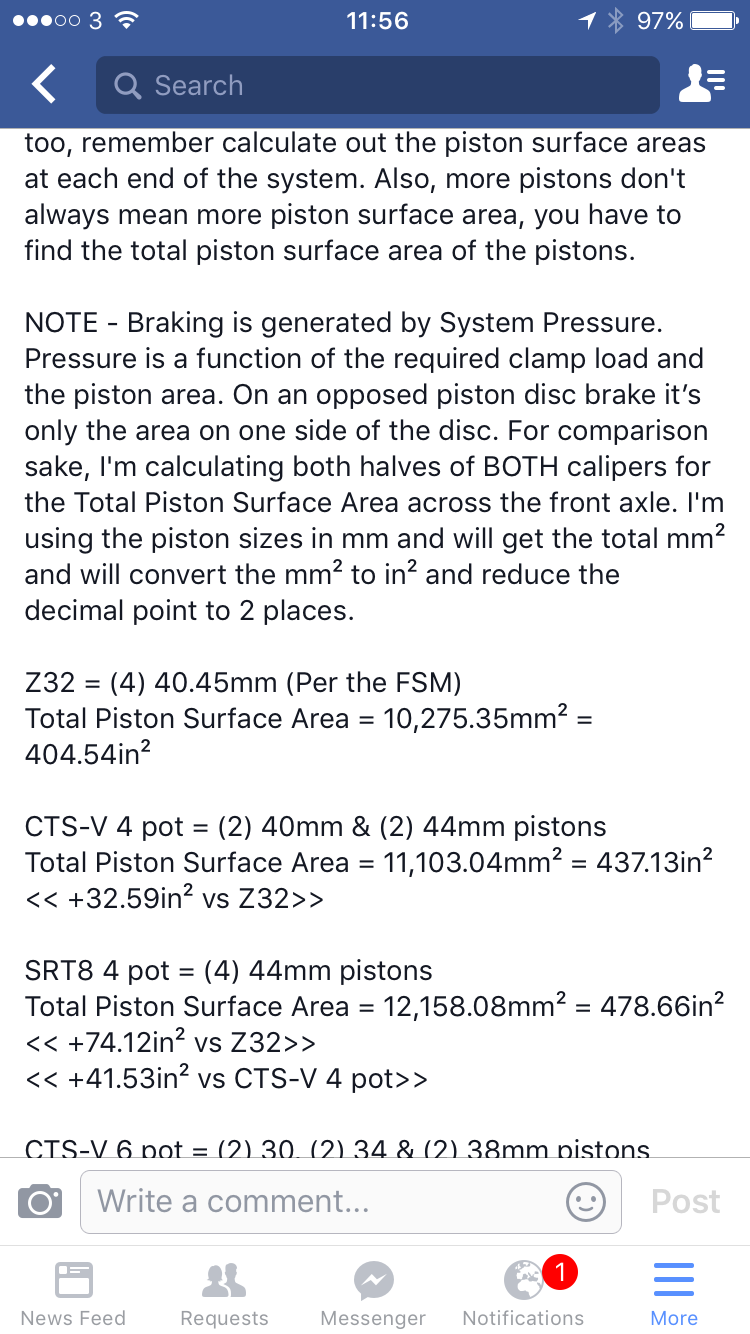

Got some info on the BMC with the new setup





Hope this is what I need to hear and if so is of use to anyone thinking about these upgrades:yes:

Fitted the two rear wheels to the subframe and took a measurement from the outer tyre edge, they measure 6'1" , what is the standard width of a rear Z?

Finished the rear caliper rebuild today:thumbup:



[ATTACH=CONFIG]100555[/ATTACH]



[ATTACH=CONFIG]100556[/ATTACH]



[ATTACH=CONFIG]100557[/ATTACH]



I'm going to use the VW 4 Pot rears as I've got the VW 6 pot fronts

Fitted the two rear wheels to the subframe and took a measurement from the outer tyre edge, they measure 6'1" , what is the standard width of a rear Z?



The track will likely change with how you've got that set up atm, until it's under tension from the upright the arc won't be true. So until it's fitted and on the floor your measurement is unlikely accurate or fixed.

Fitted the two rear wheels to the subframe and took a measurement from the outer tyre edge, they measure 6'1" , what is the standard width of a rear Z?



Over all width for a LWB is 71" or 5' 11"

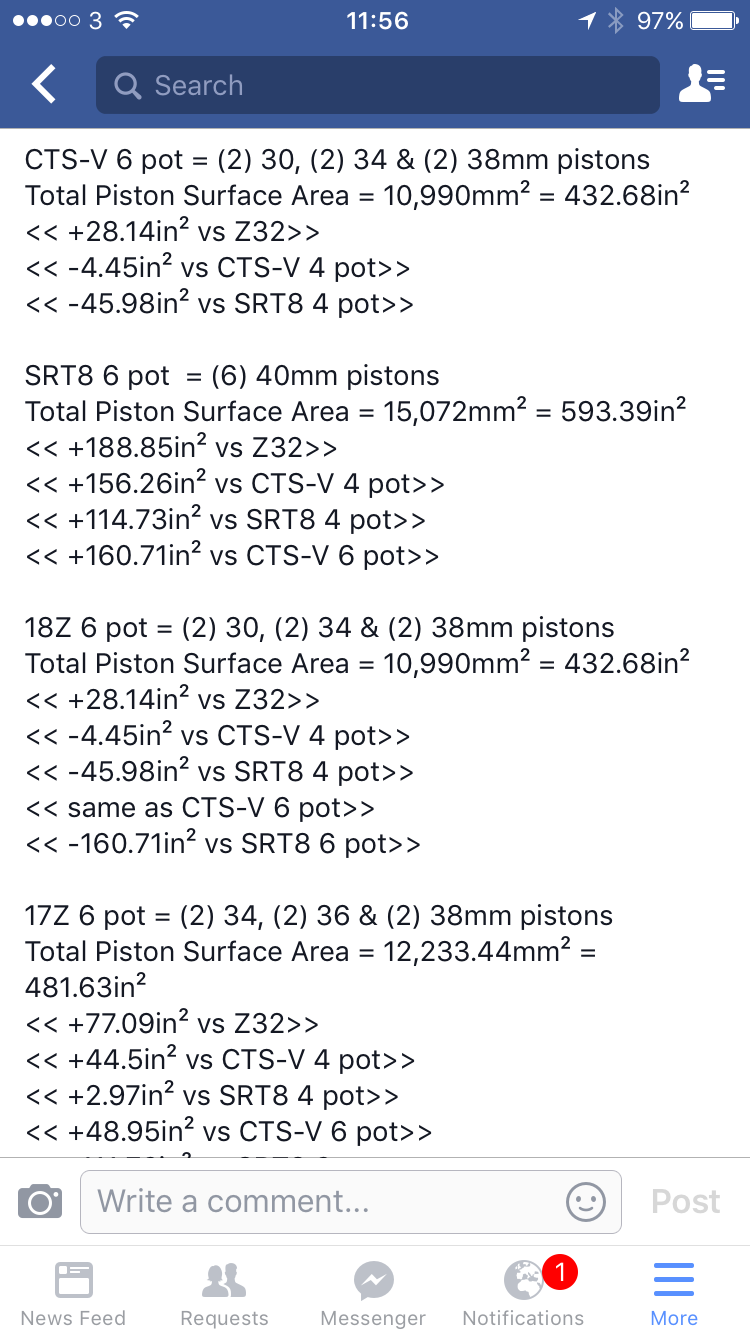

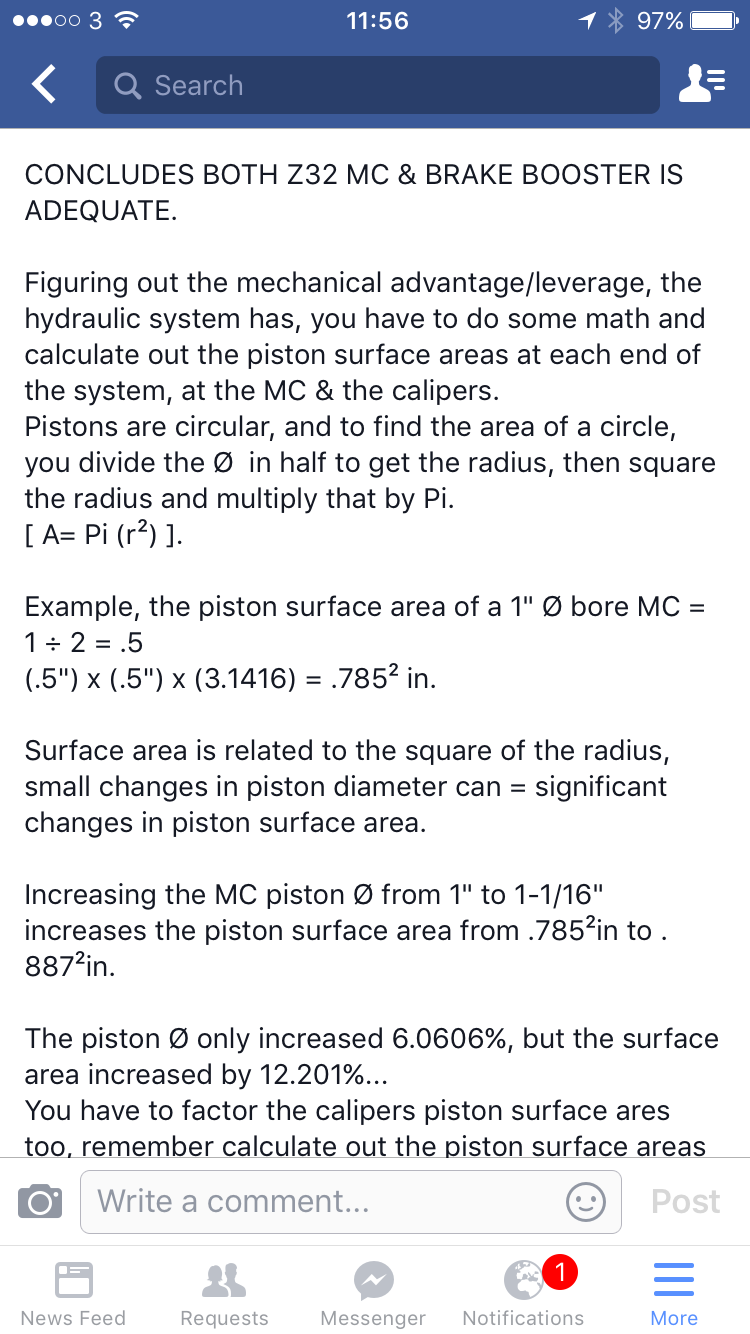

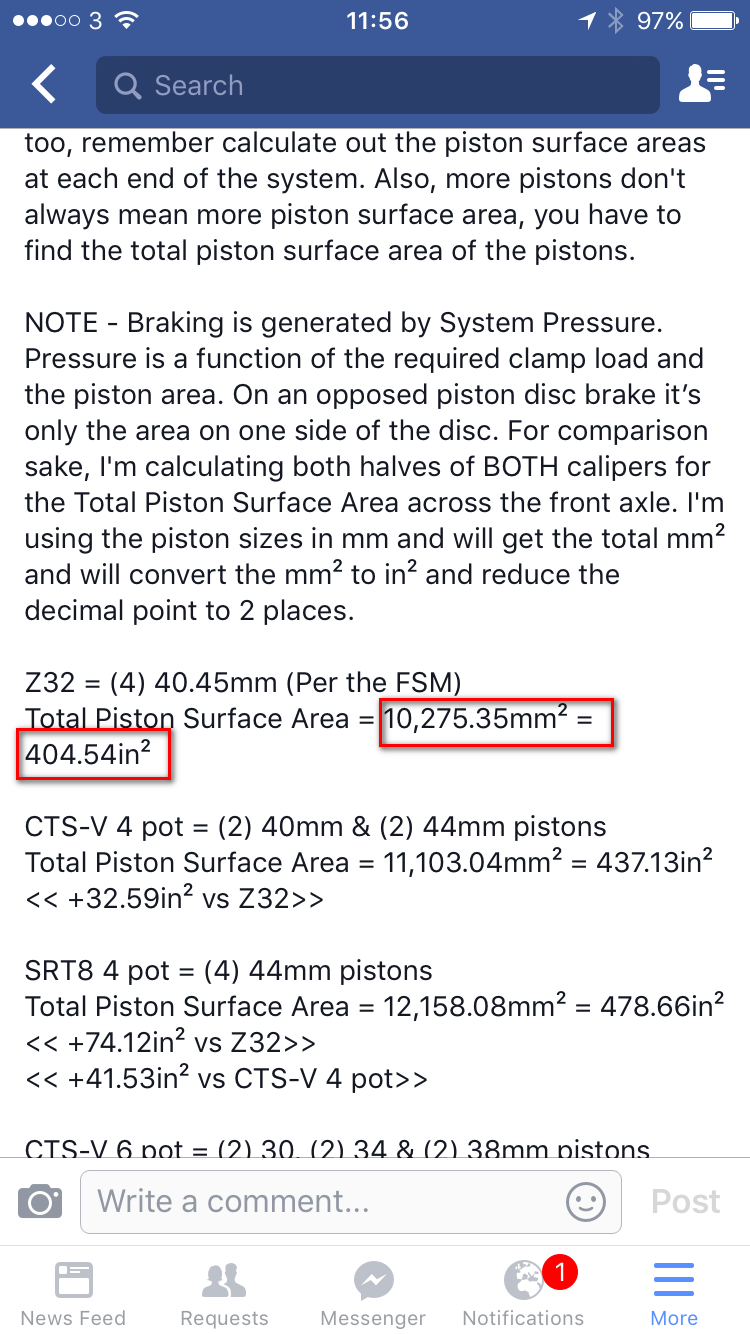

By the way the piston areas for the various calipers quoted in the your image posts above are way out. I've highlighted the

offending figures for the Z32 front caliper (the rest are the same):



What should it be Andrew?

I'm going to use the VW 4 Pot rears as I've got the VW 6 pot fronts



There are 380mm Carbon ceramic.....!

What should it be Andrew?



If you take a look at the notes for the calculator in the link I posted earlier for the purposes of calculating F/R bias

with multi pistion calipers then 40.5mm x 2 = 2574 sq mm = 3.99 sq ins.



Try the calculator, I used it for the AP F/R setup I have.

Can't make head nor tail of it mate, he was taking both sides of the calipers into account ? I couldn't see how to put in 6 Pistons for the fronts?



On another note, I asked the brother if he had any spare M12 x 1.25 wheel nuts, he had a spare set of these off one of his GTR's :punk:

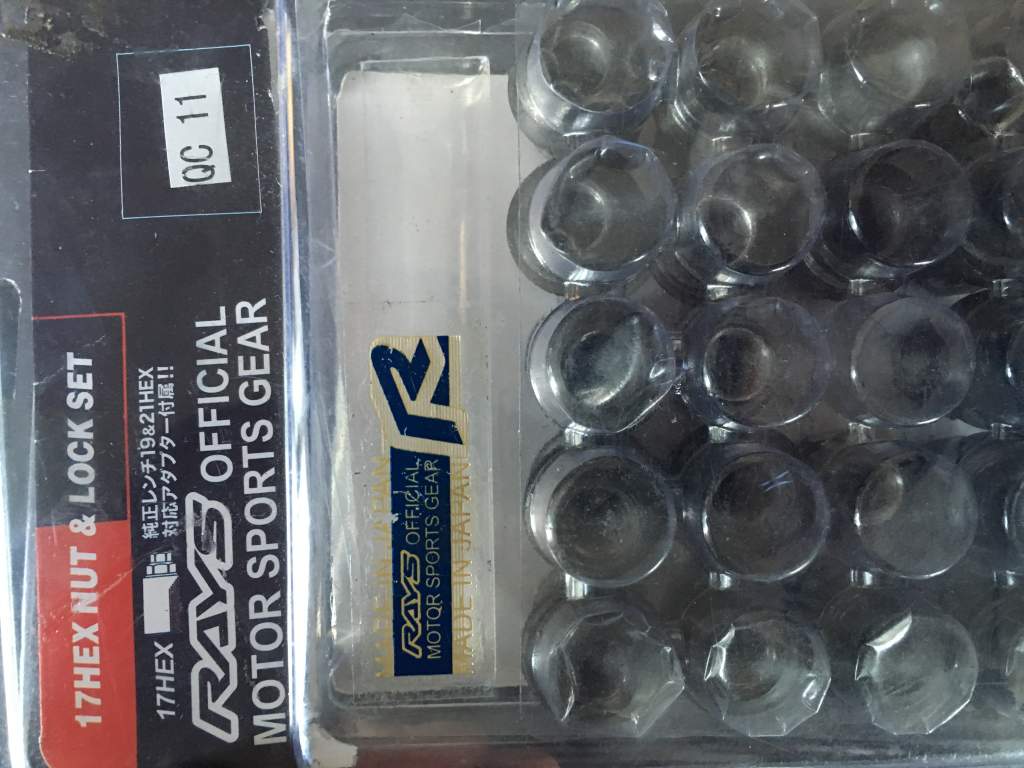

Ray's titanium wheel nuts, €125, told me to take them on for free:thumbup:
