Got the conzult cable out, connected it to my "zx", no red and green led coming on with the ignition??:angry:



Has anyone got a wiring diagram for the ddl connector. have looked and cant find one. :no:Would be nice to trace the wires back.



Have got no warning lights coming on with ignition apart from alternator light, was hoping that was the bulb check relay, which I havent checked yet.

I know its behind the fuse box in the drivers footwell.



Any other suggestions what i can check?:thumbup:



Thanks



Colin

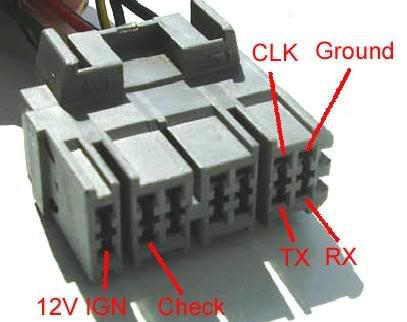

Rx wire (Receiver) to ECU’s Green wire with Black Stripe (pin 7)

Tx wire (Transmitter) to ECU’s Green wire (pin 15)

+12V wire (Power) to ECU’s Black wire with White Stripe (pin 38 or 47)

GND wire (Ground) to ECU’s Black wire (pin 39 or 48)

CLK wire to ECU’s Green wire with White Stripe (pin 14)



Jeff TT
